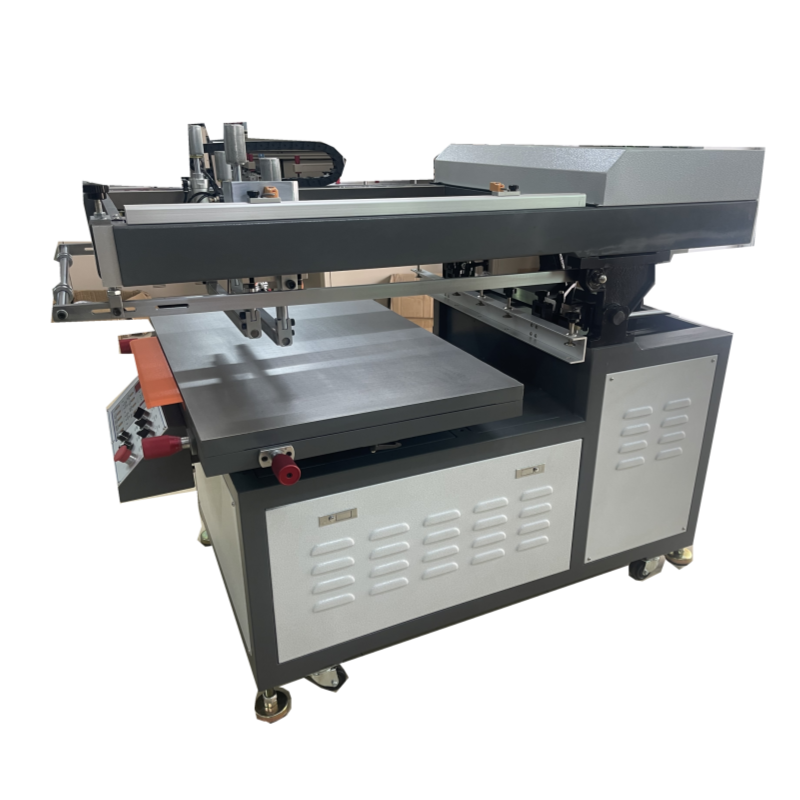

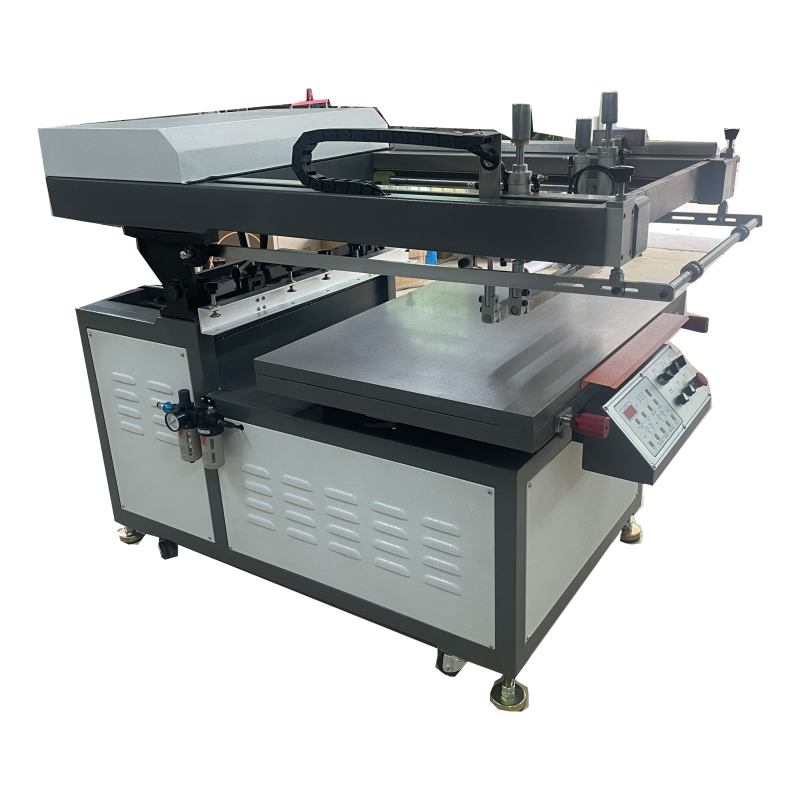

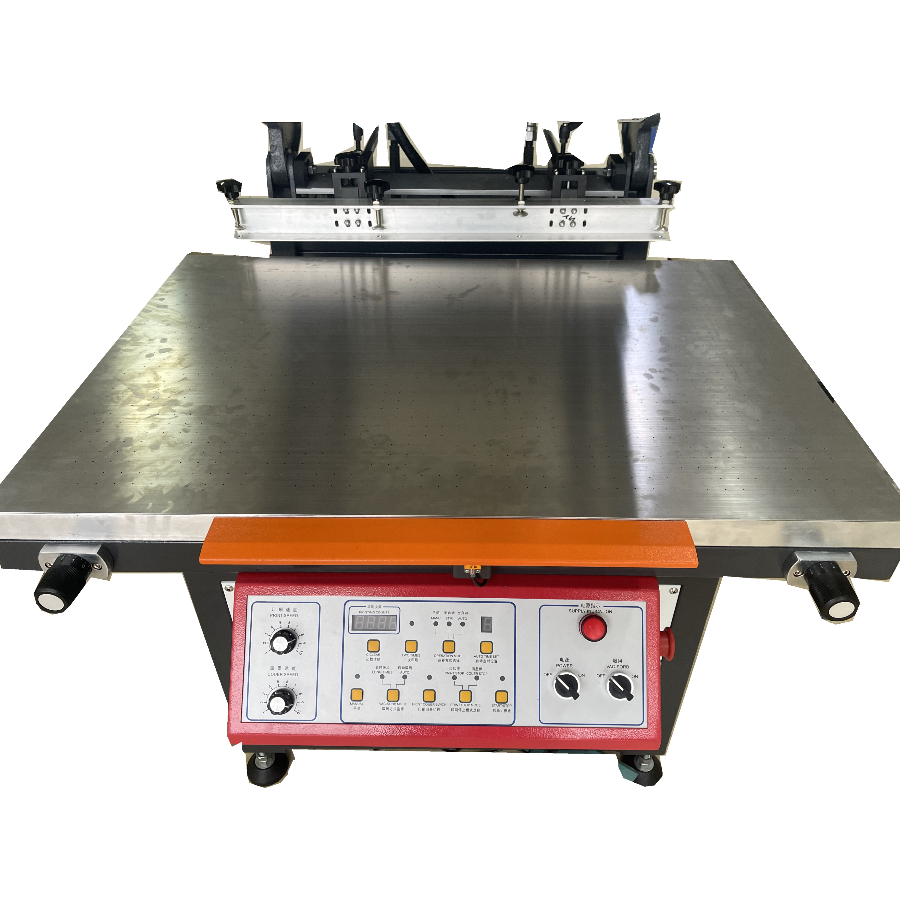

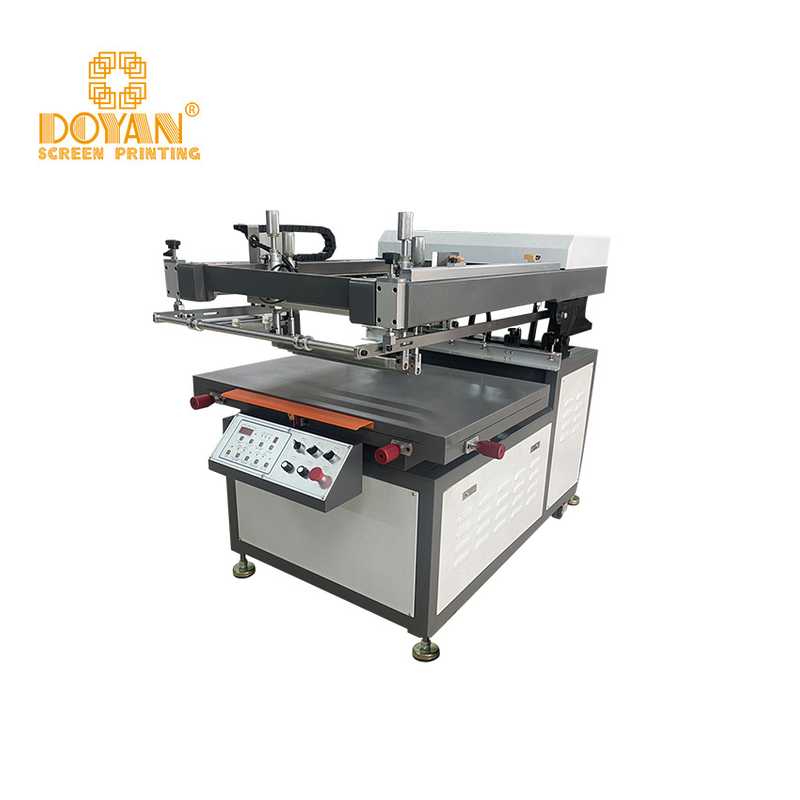

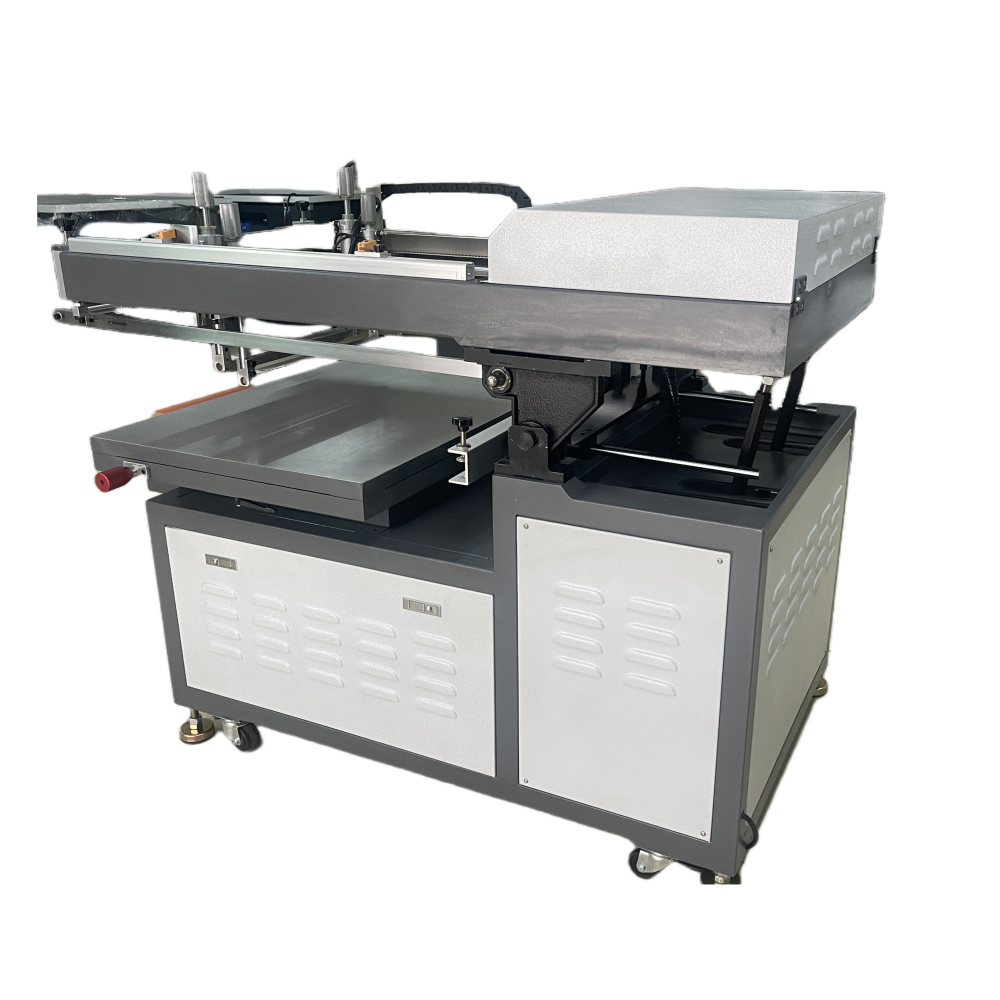

Oblique Arm Screen Printing Machine
Product Parameters
| Models | DY90120 | DY70100 | DY6090 |
| Work table area(mm) | 1000*1300 | 800*1100 | 720*1000 |
| Maximum printing area(mm) | 900*1200 | 700*1000 | 600*900 |
| Maximum screen installation(mm) | 1200*1500 | 1000*1300 | 900*1200 |
| Minimum screen installation(mm) | 650*700 | 550*650 | 450*550 |
| Screen lifting height(mm) | 300 | 300 | 300 |
| Substrate thickness(mm) | 0-20 0-50 | 0-20 0-50 | 0-20 0-50 |
| working air pressure(Mpa) | 0.3-0.5 | 0.3-0.5 | 0.3-0.5 |
| gas consumption(0.6Mpa)(L/pcs) | 13 | 13 | 13 |
| power(kw) | 3.7 | 2.3 | 2.3 |
| voltage(V/Hz) | 380/50 | 220/50 | 220/50 |
| Height of the workbench from the ground(mm) | 820 | 820 | 820 |
| printing speed(pcs/H) | 400- 1000 | 500- 1200 | 500- 1200 |
| machine dimension(mm)length*width*height | 1800*1400*1300 | 1600*1350*1280 | 1500*1200*1250 |
| machine weight(kg) | 550 | 480 | 410 |
| plate type:Screen Printer |
| brand name:doyan |
| place of origin:Hebei, China |
| Automatic Grade:Semi-Automatic |
| color & page:Multicolor |
| usage:Paper Printer, Label Printer, Card Printer, Tube Printer, Bill Printer, Cloths Printer |
| voltage:220V |
| warranty:1 Year |
| weight:480 KG |
| Application:Screen Printing |
| Type:Flat Screen Printing Machine |
| Product name:Diagonal arm screen printing machine |
| Operation:Semi Automatic Operation |
| Feature:Control |
| Printing material:Ink Print |
| MOQ:1 Set |
| Power:220v 50hz |
| Printing speed:500~1200pcs/h |
| Max Print Speed:1200mm |
| Applicable Industries:Garment Shops, Building Material Shops, Manufacturing Plant, Printing Shops, Advertising Company |
| After-sales Service Provided:Online support |
| Key Selling Points:Automatic |
| Machinery Test Report:Provided |
| Video outgoing-inspection:Provided |
| Warranty of core components:1 Year |
| Core Components:Motor |
